Replacing shock absorbers, coil springs, or top mounts is a routine job for many automotive workshops. However, anyone who has worked on a suspension system knows that removing a coil spring isn't as simple as loosening a few bolts.
A suspension spring stores a tremendous amount of energy. Before the shock absorber or top mount can be removed, that spring must first be compressed safely and under control.
Without the right equipment, suspension repairs become slower, more physically demanding, and significantly more difficult.
This is where a Strut Spring Compressor becomes one of the most valuable tools in any workshop.
Why Are Suspension Jobs Difficult?
A complete MacPherson strut assembly consists of several components working together.
These include:
- Coil Spring
- Shock Absorber (Strut)
- Strut Top Mount
- Strut Bearing
- Spring Seat
- Dust Boot
- Bump Stop
The coil spring supports the weight of the vehicle and is constantly under compression.
Even after the strut has been removed from the car, the spring is still storing a large amount of force.
Because of this, the top mount cannot simply be removed.
The spring must first be compressed before any suspension components can be replaced.
Without proper compression, the spring can suddenly release its stored energy, making the repair much more difficult and potentially dangerous.
Common Suspension Repairs That Need a Spring Compressor
A spring compressor is required whenever the coil spring needs to be separated from the strut assembly.
Some of the most common repairs include:
Replacing Shock Absorbers
Shock absorbers wear out over time and may begin to leak oil or lose damping performance.
A spring compressor safely compresses the spring so it can be transferred to the new shock absorber.
Replacing Coil Springs
Broken or sagging springs affect ride height, handling, and vehicle stability.
The spring must be compressed before it can be removed and replaced.
Replacing Strut Top Mounts
A worn top mount can cause knocking noises, steering vibration, and poor handling.
Since the top mount is held in place by spring tension, compression is required before removal.
Replacing Strut Bearings
Many front suspension systems use bearings that allow smooth steering movement.
A spring compressor is needed to access and replace the bearing.
Replacing Dust Boots & Bump Stops
These protective components are commonly replaced during suspension servicing because they are inexpensive and easy to change while the strut is already dismantled.
Installing Lowering Springs or Performance Suspension
Many enthusiasts upgrade their suspension for improved handling or appearance.
A spring compressor allows the original spring to be removed safely before the new spring is installed.
The Problems Mechanics Face Without a Spring Compressor
Many mechanics have experienced the frustration of suspension repairs without the proper equipment.
Common problems include:
The Spring Is Extremely Difficult to Compress
The coil spring is designed to support hundreds of kilograms of vehicle weight.
Trying to compress it without the proper tool requires much more effort and can quickly become frustrating.
Suspension Repairs Take Longer
Without a dedicated compressor, mechanics spend more time positioning the spring, adjusting tools, and repeating the process.
What should be a straightforward repair can become unnecessarily time-consuming.
Poor Control During Disassembly
When the spring is not compressed evenly, components can move unexpectedly during removal.
This makes the repair more difficult and increases the risk of damaging parts.
Technician Fatigue
Repeatedly tightening manual tools or struggling with heavy suspension assemblies increases physical effort, especially when multiple suspension jobs are performed in a day.
How a Strut Spring Compressor Solves These Problems
A strut spring compressor is specifically designed to make suspension repairs easier by safely controlling the coil spring throughout the repair process.
Instead of fighting against the spring's stored energy, the compressor applies even and controlled compression.
This provides several important benefits.
1. Compresses the Spring Safely
The compressor securely holds the spring while gradually reducing its tension.
This allows the top mount to be removed without the spring pushing against it.
2. Makes Suspension Repairs Faster
Once the spring is properly compressed, components can be removed quickly and reassembled with less effort.
Less time struggling means more vehicles can be serviced each day.
3. Improves Control
The spring remains securely positioned throughout the repair.
This helps mechanics align components correctly during both disassembly and reassembly.
4. Reduces Physical Effort
Instead of relying on excessive manual force, the compressor does the hard work.
Mechanics experience less fatigue, especially in busy workshops handling multiple suspension jobs daily.
5. Supports Safer Working Practices
A properly used spring compressor helps control the large amount of stored energy inside the coil spring.
Combined with proper training and safe workshop procedures, it reduces unnecessary risks during suspension servicing.

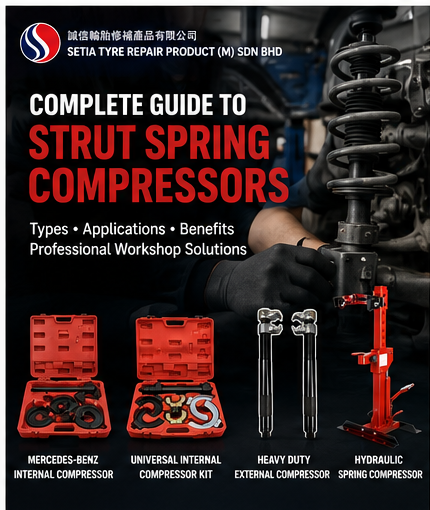

Different Types of Spring Compressors
Different vehicles and workshops require different types of spring compressors.
Mercedes-Benz Internal Spring Compressor
Designed specifically for Mercedes-Benz suspension systems.
Uses interchangeable compression plates to compress the spring from inside the coil, making it suitable for vehicles with limited external access.
Best for:
- Mercedes-Benz specialist workshops
- European vehicle service centres
Universal Internal Spring Compressor Kit
Includes multiple compression plates for different spring sizes and vehicle models.
A versatile solution for workshops servicing a wide range of passenger vehicles.
Best for:
- General repair workshops
- Multi-brand service centres
Heavy-Duty External Spring Compressor
Uses two threaded compressors to grip the spring from the outside.
Simple, portable, and suitable for many routine suspension repairs.
Best for:
- Standard suspension maintenance
- Independent repair shops
Hydraulic Strut Spring Compressor
Uses hydraulic force to compress the spring quickly and efficiently.
Ideal for workshops that perform suspension repairs every day.
Best for:
- High-volume workshops
- Suspension specialists
- Professional service centres
Which Spring Compressor Should You Choose?
Choosing the right spring compressor depends on the type of vehicles you service and the volume of suspension work your workshop handles.
| Workshop Type | Recommended Tool |
|---|---|
| Mercedes-Benz Specialist | Mercedes-Benz Internal Spring Compressor |
| Multi-Brand Workshop | Universal Internal Spring Compressor Kit |
| General Repair Shop | Heavy-Duty External Spring Compressor |
| High-Volume Suspension Workshop | Hydraulic Strut Spring Compressor |
Many professional workshops keep more than one type available to ensure they can handle different suspension designs efficiently.
Why Professional Workshops Invest in the Right Spring Compressor
Professional workshops understand that the right equipment doesn't just make repairs possible—it makes them more efficient.
A quality spring compressor helps to:
- Complete suspension repairs faster
- Improve technician productivity
- Reduce unnecessary physical effort
- Provide better control during disassembly and assembly
- Support safer workshop practices
- Deliver more consistent repair quality
Instead of struggling with a compressed coil spring, mechanics can focus on completing the repair accurately and efficiently.
Conclusion
Suspension repairs don't have to be slow, difficult, or physically demanding. Whether you're replacing a shock absorber, coil spring, top mount, or strut bearing, a Strut Spring Compressor makes the job significantly easier by safely controlling the spring throughout the repair.
At Setia Tyre Repair Product (M) Sdn Bhd, we offer a range of spring compressors to suit different workshop needs—from Mercedes-Benz internal spring compressors and universal internal compressor kits to heavy-duty external compressors and hydraulic strut spring compressor machines.
No matter the vehicle or repair, choosing the right spring compressor helps mechanics work faster, safer, and more efficiently, making it an essential investment for any professional automotive workshop.
