Nitto Coupler Pneumatic Fittings (All Sizes)

NITTO COUPLER

20PF

RM9.00 MYR

Product Details

Nitto Couplers are durable, quick-connect pneumatic fittings designed for smooth, leak-free airflow in workshops, industrial environments, and air compressor setups. Made for easy one-touch connection and disconnection, these couplers allow technicians to switch between tools efficiently while maintaining strong, reliable air delivery. Available in multiple thread and hose sizes — from 1/4" to 1/2", plugs or sockets, threaded or hose barb types — they offer a perfect fit for air tools, compressors, hoses, and pneumatic systems of varying capacities. With a maximum pressure rating of 1.5 MPa (≈218 PSI), these couplers are suitable for light-duty, mid-range and heavy-duty applications.

Key Features

One-touch quick-connect pneumatic couplers

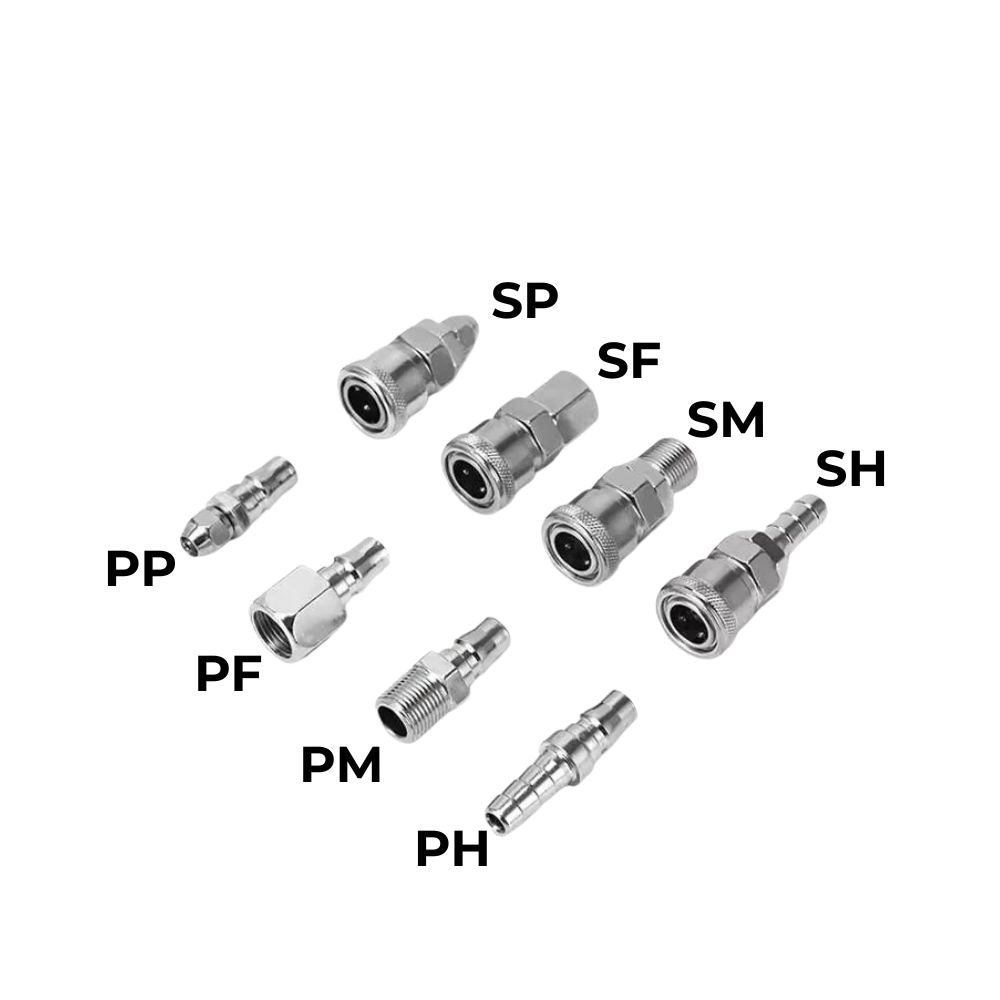

Available in plug and socket types
Threaded (male/female) or hose barb options
Compatible with 1/4", 3/8" and 1/2" systems
High pressure rating up to 1.5 MPa (≈218 PSI)
Ensures strong, smooth and leak-free airflow
Suitable for air tools, compressors, hoses and industrial setups
Durable construction for long-term workshop use

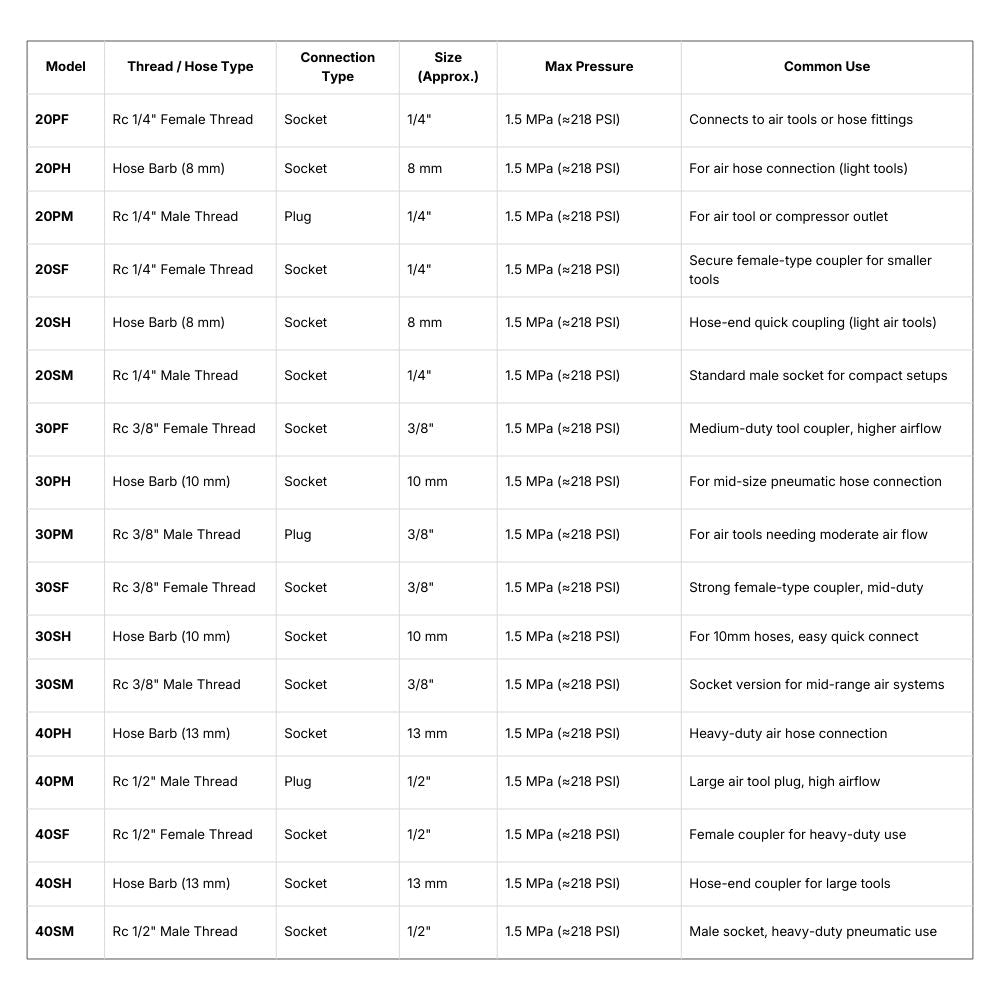

Specifications

20PF
Rc 1/4" Female Thread • Socket • 1/4" • 1.5 MPa (≈218 PSI)
Use: Connects to air tools or hose fittings

20PH
Hose Barb (8 mm) • Socket • 8 mm • 1.5 MPa (≈218 PSI)
Use: For air hose connection (light tools)

20PM
Rc 1/4" Male Thread • Plug • 1/4" • 1.5 MPa (≈218 PSI)
Use: For air tool or compressor outlet

20SF
Rc 1/4" Female Thread • Socket • 1/4" • 1.5 MPa (≈218 PSI)
Use: Secure female-type coupler for smaller tools

20SH
Hose Barb (8 mm) • Socket • 8 mm • 1.5 MPa (≈218 PSI)
Use: Hose-end quick coupling (light air tools)

20SM
Rc 1/4" Male Thread • Socket • 1/4" • 1.5 MPa (≈218 PSI)
Use: Standard male socket for compact setups

30PF
Rc 3/8" Female Thread • Socket • 3/8" • 1.5 MPa (≈218 PSI)
Use: Medium-duty tool coupler, higher airflow

30PH
Hose Barb (10 mm) • Socket • 10 mm • 1.5 MPa (≈218 PSI)
Use: For mid-size pneumatic hose connection

30PM
Rc 3/8" Male Thread • Plug • 3/8" • 1.5 MPa (≈218 PSI)
Use: For air tools needing moderate air flow

30SF
Rc 3/8" Female Thread • Socket • 3/8" • 1.5 MPa (≈218 PSI)
Use: Strong female-type coupler, mid-duty

30SH
Hose Barb (10 mm) • Socket • 10 mm • 1.5 MPa (≈218 PSI)
Use: For 10mm hoses, easy quick connect

30SM
Rc 3/8" Male Thread • Socket • 3/8" • 1.5 MPa (≈218 PSI)
Use: Socket version for mid-range air systems

40PH
Hose Barb (13 mm) • Socket • 13 mm • 1.5 MPa (≈218 PSI)
Use: Heavy-duty air hose connection

40PM
Rc 1/2" Male Thread • Plug • 1/2" • 1.5 MPa (≈218 PSI)
Use: Large air tool plug, high airflow

40SF
Rc 1/2" Female Thread • Socket • 1/2" • 1.5 MPa (≈218 PSI)
Use: Female coupler for heavy-duty use

40SH
Hose Barb (13 mm) • Socket • 13 mm • 1.5 MPa (≈218 PSI)
Use: Hose-end coupler for large tools

40SM
Rc 1/2" Male Thread • Socket • 1/2" • 1.5 MPa (≈218 PSI)
Use: Male socket, heavy-duty pneumatic use
